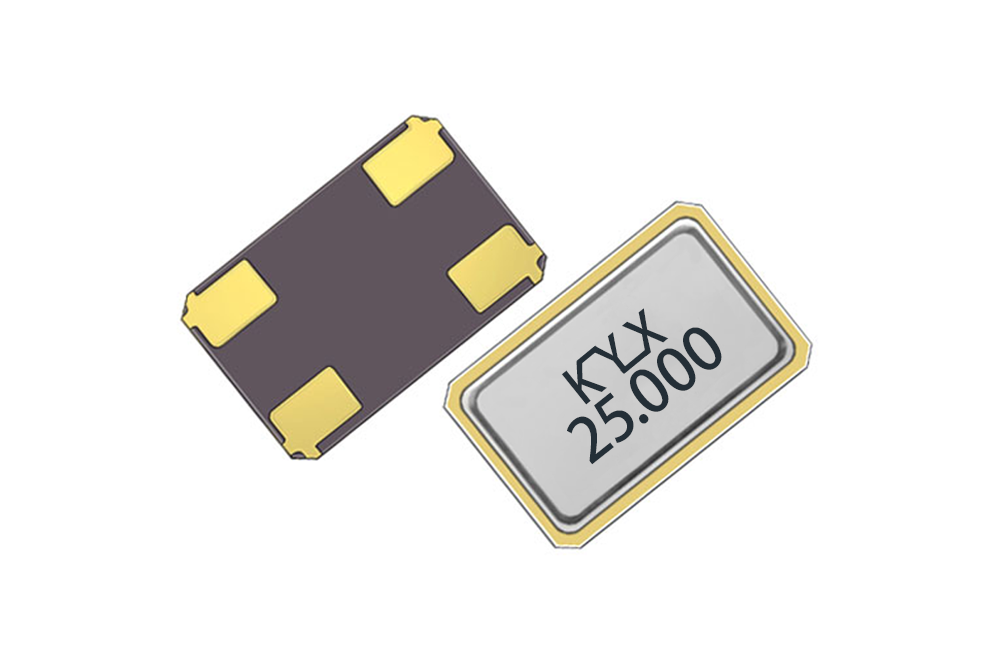

| Brand | KYX |
| Type | XO 5032 |
| Package Size(mm) | 5.0×3.2 |
| Frequency Range(MHz) | 25.000 |
| Output | CMOS |
| Voltage-Supply(v) | None |
| LoadCapacitance(pf) | 15 |
| Temp Stability(ppm) | 20 |
| Temperature Range(℃） | -40~+85 |
| Pads | 4 |
Description
Parameters：
1. General item
Nominal frequency: 25.000MHz
Vibration mode: AT Fund
Operation temperature range:-40℃~+85℃
Storage temperature rang:-40℃~+85℃
Test machine: S&A 250B
Drive level: 100μW
Load capacitance:15pF
2. Electrical characteristics
Condition:25±3℃ Relatively humidity≤60%
2.1 Frequency tolerance: ±20ppm
2.2 Equivalent resistance:≤40Ω
2.3 Temperature characteristics: ±20ppm
2.4 Shunt capacitance:≤7pF
2.5 Insulation resistance:≥500MΩ/100±15V DC
2.6 Aging characteristics: ±5ppm/year
