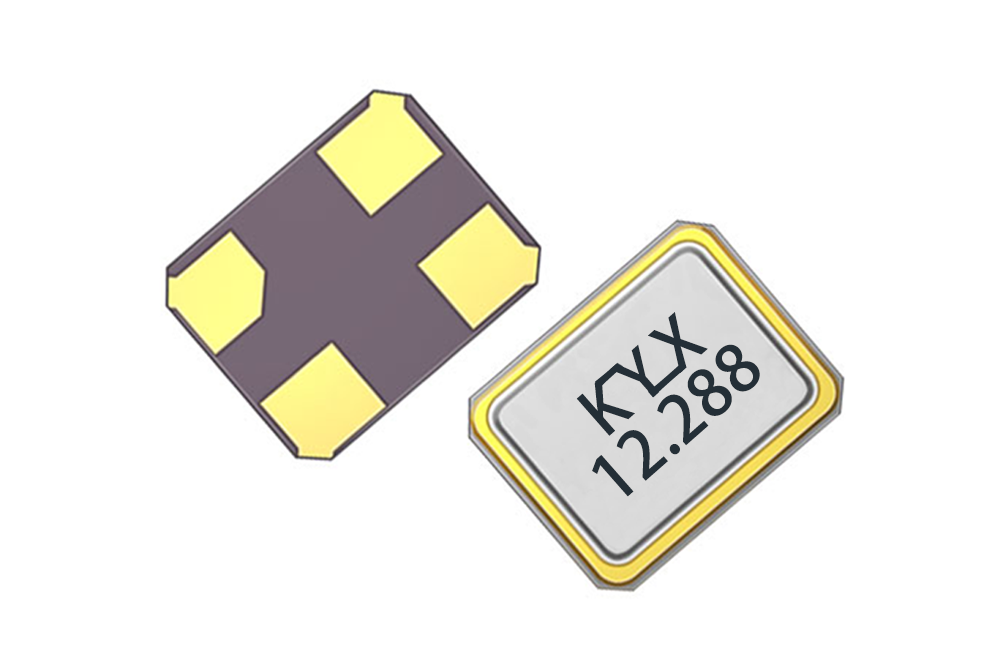

| Brand | KYX |
| Type | XO 3225 |
| Package Size(mm) | 3.2×2.5 |
| Frequency Range(MHz) | 12.288 |
| Output | CMOS |
| Voltage-Supply(v) | None |
| LoadCapacitance(pf) | 20 |
| Temp Stability(ppm) | 10 |
| Temperature Range(℃） | -40~+85 |
| Pads | 4 |
Description
Parameters：
1. Frequency: 12.288 MHZ
2. Holder Type: SMD3.2*2.5
3. Frequency Tolerance: ±10ppm at 25℃±3℃
4. Equivalent Series Resistance: 80ΩMax
5. Storage Temperature Range: -40℃ ～ + 85℃
6. Operating Temperature Range: -40℃ ～ +85℃
7. Frequency Characteistics Over Temperatnre: ±20ppm -40℃～+85℃
8. Load Capacitance (CL): 20 PF
9. Drive Level: 100μW
10. Shunt Capacitance: 5PF MAX
11. Insulation Resistance: ≥500MΩ Min at 100 V
12. Mode Of Oscllation: Fundamental
13. Aging: ±3ppm/Year
