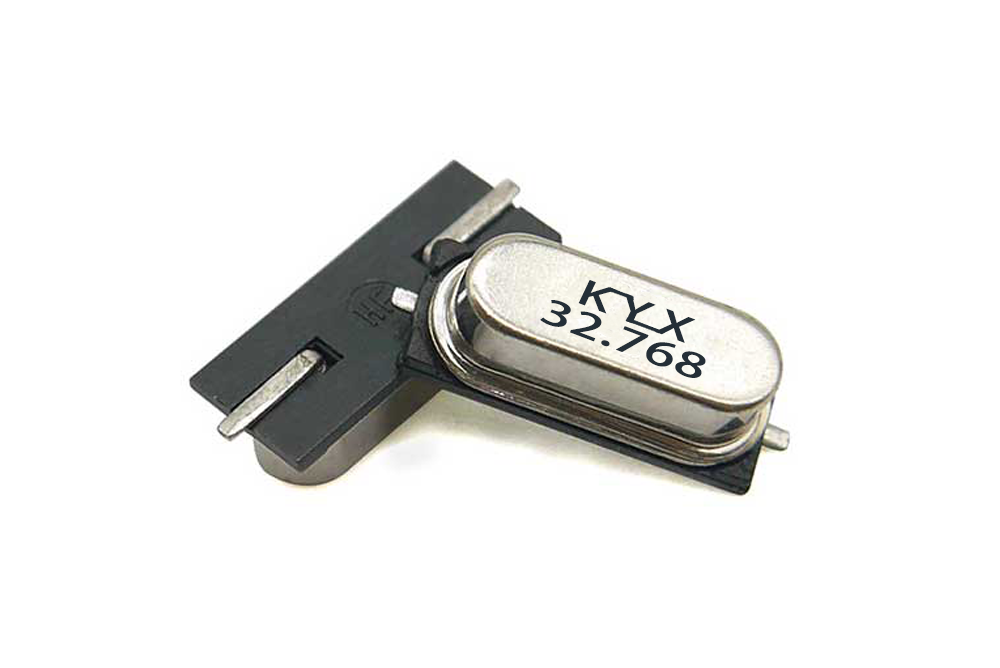

| Brand | KYX |
| Type | SMD 3068 |
| Package Size(mm) | 7.0×4.0 |
| Frequency Range(kHz) | 32.768kHz |
| Output | CMOS |
| Voltage-Supply(v) | None |
| LoadCapacitance(pf) | 12.5 |
| Temp Stability(ppm) | 10 |
| Temperature Range(℃） | -40~+85 |
| Pads | 2 |
Description
Parameters：
1. Frequency: 32.768KHZ
2. Holder Type: 3068
3. Frequency Tolerance: ±10ppm at 25℃±5℃
4. Equivalent Series Resistance: 70 KΩMax
5. Storage Temperature Range: -40℃ TO + 85℃
6. Operating Temperature Range: -40℃ TO + 85℃
7. Frequency Characteistics Over Temperatnre: ±10ppm -40℃TO +85℃
8. Load Capacitance (CL): 12.5 PF
9. Drive Level: 1.0 uW MAX
10.Shunt Capacitance: 1.35PF MAX
11.Insulation Resistance: 500MΩ Min at D.C.100 V
12.Capacitance ratio 650 max
13.Aging: ±5ppm/Year
14.Marking K32.768
