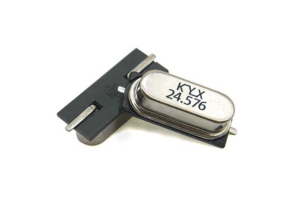

| Brand | KYX |
| Type | HC-49SMD |
| Package Size(mm) | 11.5×5.5×3.5 |
| Frequency Range(MHz) | 24.576 |
| Output | CMOS |
| Voltage-Supply(v) | None |
| LoadCapacitance(pf) | 20 |
| Temp Stability(ppm) | 20 |
| Temperature Range(℃） | -20~+70 |
| Pads | 2 |
Description
Parameters：
1. General item
Nominal frequency: 24.576MHz
Vibration mode: AT Fund
Operation temperature range:-20℃~+70℃
Storage temperature rang:-40℃~+85℃
Test machine: S&A KH-1240
Drive level: 100μW
Load capacitance:20pF
2. Electrical characteristics
Condition:25±2℃ Relatively humidity≤60%
2.1 Frequency tolerance: ±20ppm
2.2 Temperature characteristics: ±20ppm
2.3 Shunt capacitance:≤5pF
2.4 Insulation resistance:≥500MΩ/100±15V DC
2.5 Aging characteristics: ±5ppm/year
